ZAMAK 3（ZNAL4，ZPO400）
ZAMAK 3（ZNAL4，ZPO400）
ZAMAK 3（ZNAL4，ZPO400）

ZAMAK 3（ZNAL4，ZPO400）

Zamak 3 is usually the first choice when considering a zinc die casting .  It has an excellent combination of physcial and mechanical properties, superb castability and long-term dimensional stability.  Nearly 70% of all zinc die castings are made from Zamak 3 .  It is therefore the most widely available alloy from die casting sources.  Zamak 3 also offers excellent finishing characteristics for plating, painting and chromate treatments.It is the "Standard" by which other zinc alloys are rated in terms of die casting.

Typical Mechanical Properties (Die Cast)：

Ultimate Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation:% in 2"

Hardness:Brinell

283

221

10

82

Typical Physical Properties：

Density(g/cm³)

Melting Range(°C/°F)

Electrical Conductivity:%IACS

Specific Heat (J/kg·°C)

Die Shrinkage(in/in)

6.6

381 - 387 (718 - 728)

27

419

.007

Chemical Specification:

% By weight

Ingot

Casting

Al

3.9 - 4.3

3.7 - 4.3

Mg

0.03 - 0.06

0.02 - 0.06

Cu

.03 max

.1 max

Fe(max)

.02

.05

Pb(max)

.003

.005

Cd(max)

.003

.004

Sn(max)

.0015

.002

Ni

-

-

Zn

Balance

Balance



The appropriate industry：

Environmentally friendly die-cast zinc alloy -3# is suitable for Automobiles, Motorcycles, Electronic communications, Instruments and other Mechanical parts, as well as Toys, Ornaments, Tableware, Locks and other Hardware devices.



Performance feature：

  • This product meets the standards of China, the United States and the European Union;Comply with ROHS, EN71Part3, EN1811, CPSIA and other requirements;
  • Low remelting temperature, less slag content, and fine internal crystallization;
  • Good physical and mechanical properties, castability, dimensional stability and creep resistance.



Method of application

  • Bake and dry before use. Do not stir or dredge when feeding.The scum above the molten liquid is stirred calmly with a slag rake to collect it and remove it;
  • The nozzle material according to the ratio of 25%-30% input, no need to slag;
  • The best die casting temperature: 420℃-435℃, the best mold temperature: 210℃-230℃.The upper limit of die-casting temperature is recommended for thin-walled parts and complex parts, and the lower limit is recommended for thick-walled parts and simple parts.
  • The following phenomena may exist in the use process: there is a thin oil film on the surface of the alloy liquid, and there will be a small amount of black film, which is a normal phenomenon.



Packing storage

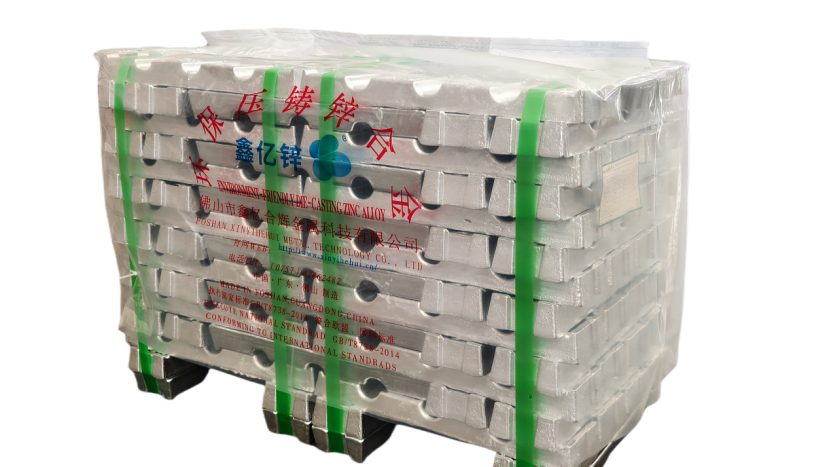

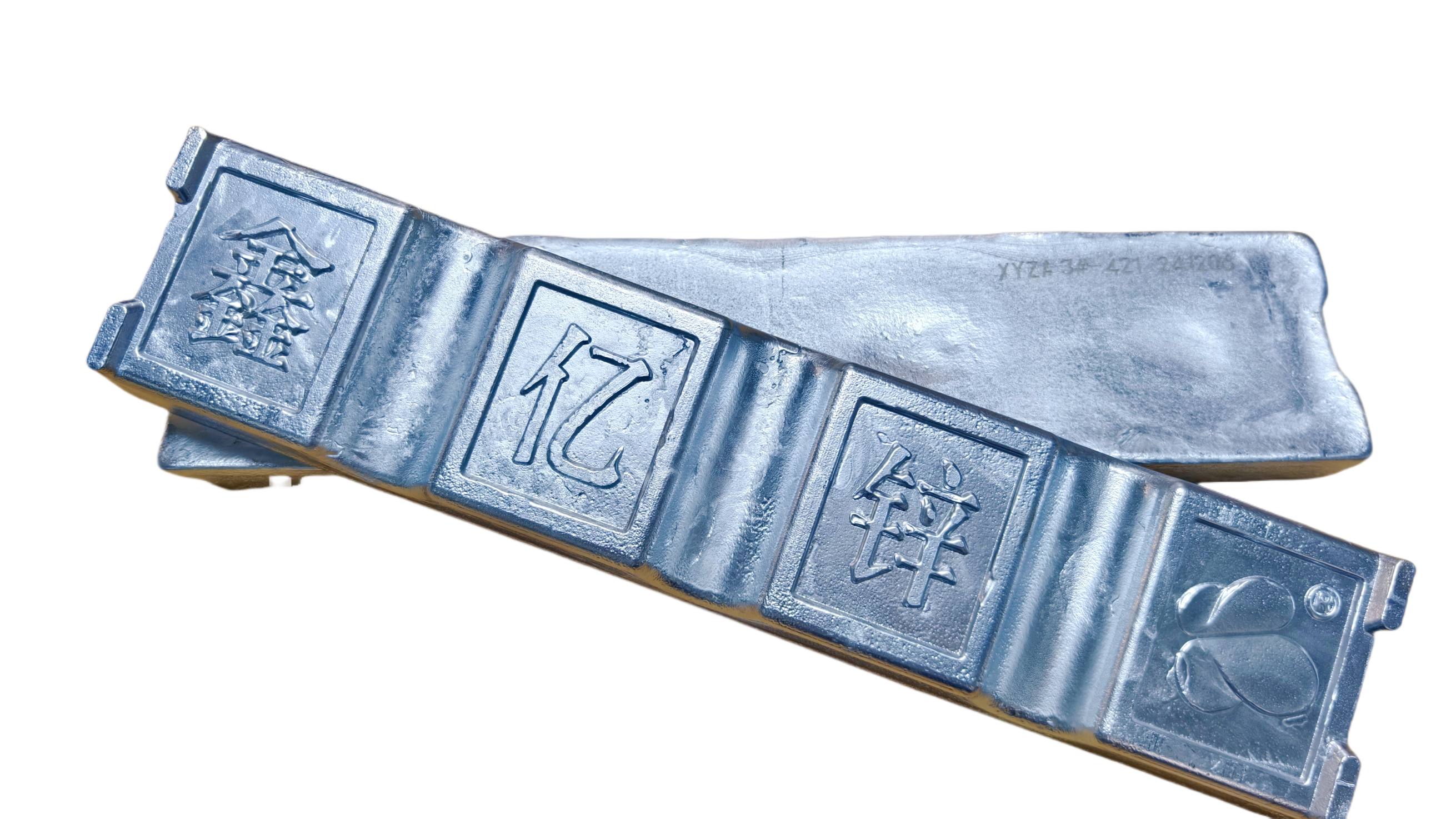

This product is a block of silver-white metal, stacked neatly, 112 pieces per bundle , bundled with PET strap, and packaged with PVC bag.

After unpacking is not used up, it is best to re-seal, dust and reduce oxidation.

Store in ventilated, dry, non-corrosive substances place, pay attention to moisture.
